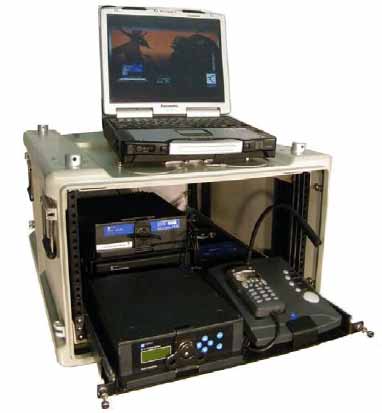

Codan NGT MRx Military Transceiver

SPECIFICATIONS Part No Strategic HF Radio System - Deployabie Power Supply 100-240 VAC ±10%, 50/60 Hz Channels 600 Frequency Range Transmit: 1-6-30 MHz Receive: 250 kHz-30 MHz Frequency Stability ± 0.5ppm (-30C to 60C) Receiver Sensitivity -125 dBm (10 dB SINAD) Intermodulation Distortion >32 dB below PEP Suppression >60 dB below PEP (spurious and harmonics) Operating Temperature -10° С to +60° С Receive Audio Easitaik DSP filtered audio Power Amplification 125/500/1000 W PEP +/-1dB Duty Cycle 100%: Normal Speech overfull temperature range 100%: all modes up to maximum ambient 45° С Operating mode Single sideband (J3E, USB. LSB. AM) Interface RS232, 300-19200 baud, 2/4 wire, Ethernet (OEM) Input/Output Impedance 50 Ohm Protection Safe under all load conditions Bypass to 125W PEP Spurious and harmonic emissions Better than 60 dB below PEP Size 5RU, 33.6 L X 22.6W x 13.1 H (x2) 7RU, 33.6 L X 22.6W x 16.1 H (x1) Weight 236 lb/107 kg (500 W) 244 lb /111 kg(1000W)

The Codan NGT MRX series of Strategic HF Radio Systems is a self-contained, easily-deployed family of radio systems, used with the following equipment:

• Codan NGT MR HF Transceiver
• 3061 500W or 3062 1000W Power Amplifier
• CODAN voice/data accessories

Features

• Email, Fax. GPS Tracking and Telephony Support
• 125W/500W/1000W RF Power Output
• Ease of use and programming
• JITC Certified MIL-STD-188-141B ALE
• FED-STD-1045 ALE/CALM
• MIL-STD-110B data (with Modem)
• Commercially transportable
• Highly depioyabie. stackable, Interlocking case system
• Optional antenna and accessories
• Dual and split site configuration
• Over The Air (OTA) control monitor capabilities
• Legacy System Interoperability
• Multiple COMSEC Solutions
• Type-1 COMSEC Interoperability о KY-99 о KY-100

Ease of Deployment

The systems are self contained and easily configured for operation. The operator simply places transit cases in a stacked or staggered configuration on a bench or on the ground, and connects the appropriate cables. The control console or handset may be located in a separate location from the control and PA cases. Codan's OTA (over-the-air) control and monitoring capability maximizes system performance and deployment effectiveness.

System Options
High Power Transceiver Systems

• 500 Watts
• 1000 Watts

Remote & Split-Site Transmitter and Receiver Systems

• Slave transmitter or Slave Receiver
• Slave RX/TX operate via 2-wire or 4-wire
• 4 wire interface for use over radio links

Radio Over Internet Protocol (ROIP) Software Integration

• Interoperate with legacy and deployed systems
• Use of up to 4 radios
• Support of multiple vendor interface
