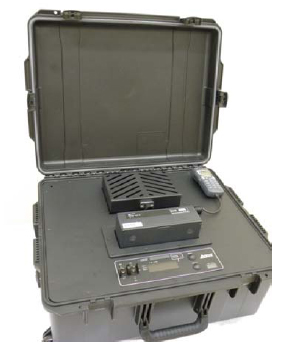

CODAN MRZ Strategic HF Radio System

SPECIFICATIONS Part No Strategic HF Radio System - Deployable Power Supply 100-240 VAC ±10%, 50/60 Hz:9-36 V DC: Lithium-Ion Battery & UPS System (Automatic) Channels 600 Frequency Range Transmit: 1-6-30 MHz Receive: 250 kHz-30 MHz Frequency Stability ± 0.5ppm (-30C to 60C) Receiver Sensitivity -125 dBm (10 dB SINAD) Intermodulation Distortion >32 dB below PEP Suppression >60 dB below PEP (spurious and harmonics) Operating Temperature -10° Ñ to +60° Ñ Receive Audio Easitaik DSP filtered audio Power Amplification 125/500/1000 W PEP +/-1dB Duty Cycle 100%: Normal Speech overfull temperature range 100%: all modes up to maximum ambient 45° Ñ Operating mode Single Side Band (J3E, USB. LSB. AM,H3E) Interface RS232, 300-19200 baud, 2/4 wire, Ethernet (OEM) Input/Output Impedance 50 Ohm Protection Safe under all load conditions Bypass to 125W PEP Spurious and harmonic emissions Better than 60 dB below PEP Size  33.6 L X 22.6W x 13.1 H Weight 40lb/18 kg  (50lb/23kg with Li-Ion Batteries Qty 3)

The Codan MRZ series of Tactical HF Radio Systems is a self-contained, easily-deployed family of radio systems, used with the following equipment:

• Codan NGT MR series Transceiver
• CODAN voice/data accessories

• Email,Fax,GPS Tracking and Telephone Support
• 125-W RF Power Output
• Ease of use and programming
• JITC Certified MIL-STD-188-141B ALE
• FED-STD-1045 ALE/CALM
• MIL-STD-110B data (with Modem)
• Commercially transportable (Airline Hand baggage)
• Highly deployable & Lightweight Pelican Case System
• Universal & Automated AC/DC/Battery Operation Power Input - UPS Protected (Lithium-Ion)
• Full Range of Tactical and Platform Antennas and accessories
• Over The Air (OTA) control monitor capabilities
• Legacy System interoperability
• Multiple COMSEC Solutions
  • Type-1  COMSEC Interoperability
  • - KY-99
  • - KY-100

Ease of Deployment

The systems are self contained and easily configured for operation. The operator simply connects the system to power and antennas and communicates. The MRZ incorporates a unique platform capability that enables rapid installation on both static and vehicular platforms Codan's
